Architecture

Overview

Initial deployment

Here are the different modules involved in SKAS authentication right after base installation:

SKAS is deployed as a Kubernetes Pod, hosting three containers:

• skAuth which is responsible for delivering Kubernetes tokens and validating them.
• skmerge, which is responsible for building a consolidated identity from several Identity Providers. In this configuration, with only one provider, it acts as a simple passthrough.
• skCrd, which is an Identity Provider storing user's information in the Kubernetes storage, in the namespace skas-admin.

In this schema, the arrows represent the main communication flow between the components, all of which involve HTTP exchanges.

Here is a summary of the exchange for an initial interaction:

• The user issues a kubectl command (such as kubectl get pods). For this, a token is needed. It will be provided by the kubectl-sk client-go credential plugins.
• kubectl-sk prompts the user for login and password, then issues a tokenCreate() request to the skAuth module.
• The skAuth module issues a getIdentity() request with user credentials. This request is forwarded to the skCrd module.
• The skCrd module retrieves the user's information, checks password validity, and sends the information upward to the skMerge module, which forwards them to the skAuth module.
• The skAuth module generates a token and sends it back to the kubectl-sk module, which forwards it to kubectl.
• kubectl sends the original request with the token to the Kubernetes API server.
• The API Server sends a tokenReview() request to the skAuth module, which replies with the user's information (user id and groups).
• The API Server applies its RBAC rules on user's information to allow or deny the requested operation.

For a more detailed description of this interaction, you can refer to the sequence diagram.

LDAP setup

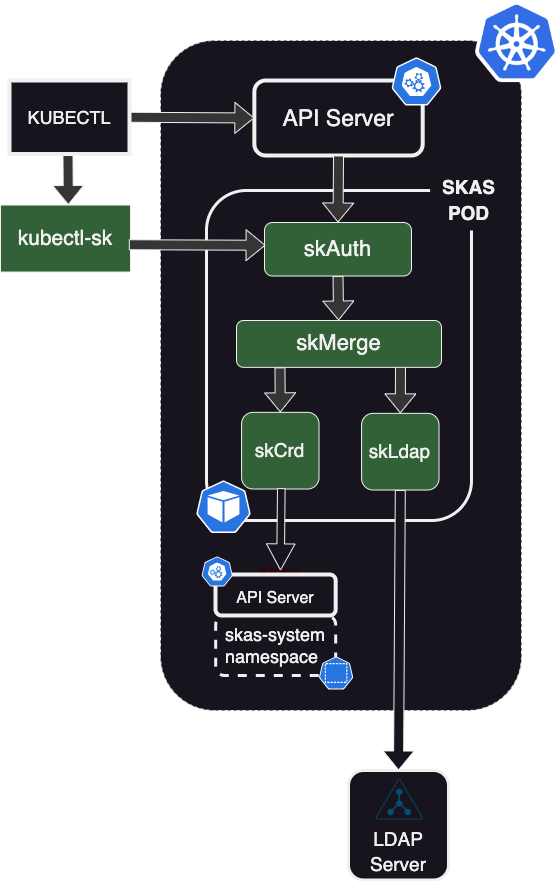

This schema describes the architecture when an LDAP server has been configured, as detailed in the previous chapter.

The skMerge module is now connected to two identity providers: skCrd and skLdap, with skLdap being linked to an external LDAP server.

Modules and interfaces

Here is a description of the modules comprising SKAS and their interfaces:

Identity providers (skCrd, skLdap, skStatic)

The skStatic provider hosts its user database in a configMap. It was used for testing during the primary development stages. It is now deprecated and undocumented.

Under the default configuration, interfaces provided by these modules are associated with an HTTP server bound to localhost, making them accessible only from another container in the same pod (typically skMerge).

Identity

These modules provide an identity interface. The request contains the user's login and optionally the user's password.

The response will convey the user's information (UID, common names, emails, groups) if the user is found, along with a status:

• UserNotFound: If the user does not exist in this provider.
• PasswordUnchecked: If the password was not provided in the request or if there is no password defined by this provider.
• PassswordChecked: If a password was provided in the request and the provider validates it.
• PasswordFailed: If a password was provided in the request and the provider does not validate it.
• Disabled: If the user is found but its disabled flag is set.
• Undefined: If the provider is out of order (for example, if the LDAP server is down).

PasswordChange

The skCrd provider also handles another interface: passwordChange, which allows password modification by providing the old and new password (the latter in its hashed form).

skMerge

Under the default configuration, the interfaces provided by this module are associated with an HTTP server bound to localhost, making them accessible only from another container in the same pod (typically skAuth)."

Identity

The skMerge module supports the same identity interface as a provider. Of course, the returned value is the merge of information from its underlying providers.

This module also supports some extensions of this identity protocol:

• The returned result also indicates which provider was the 'authority' (the one that validates the password) for this user.
• The request can include a detailed flag. If set, the response will include a detailed list of responses from each provider. This is intended to be displayed by the kubectl-sk user describe CLI command."

PasswordChange

The skMerge module also supports a passwordChange interface. The request must contain the user's authority, which is the target provider to which this message will be forwarded.

skAuth

Under the default configuration, all interfaces provided by this module are exposed to the outside world through an ingress controller. They are secured using end-to-end SSL, with SSL termination handled by the module itself, and the ingress configured in SSL passthrough mode.

Except for the login and tokenReview interfaces, all others in this module are designed to be called from the kubectl-sk client executable.

TokenCreate

The tokenCreate request contains a user's login and password. If the authentication is successful, a token is generated. The response will include:

• The generated token.
• User information for the whoami subcommand.
• The clientTTL for token expiration in the client's local cache.
• The authority, indicating the provider that validated the login/password.

TokenRenew

The tokenRenew interface check if the token is still valid and renew (touch) it. The tokenRenew interface checks if the token is still valid and renews (touch) it.

PasswordChange

This is a simple passthrough that forwards the request to the underlying skMerge provider.

Kubeconfig

This interface provides a set of information that allows kubectl-sk to create an entry in the client config file, typically located at ~/.kube/config, for accessing the targeted SKAS-enabled cluster. This enables automatic client-side configuration.

Identity

This interface is intended to be called for a kubectl-sk user describe operation. It forwards the request to the underlying skMerge module. However, since this operation is reserved for the SKAS administrator, the caller must provide authentication credentials, typically its token, to ensure they have the necessary rights

Login

This interface checks user credentials. If successful, the user's information is provided in the response. It is intended to be used by other applications, such as the DEX connector.

This interface is disabled by default in the configuration.

TokenReview

This interface is designed to support Webhook Token Authentication. It will be invoked by the Kubernetes API server to validate a token and retrieve associated user attributes.

Interfaces exposition

Each interface can be exposed at three levels:

• Locally, accessible only from other containers in the same pod.
• Internally within Kubernetes, by creating a Kubernetes Service.
• Externally outside Kubernetes, by configuring a Kubernetes ingress controller.

For each module, every exposed API can be accessed on two ports:

• One is associated with a server bound to localhost, enabling intra-pod communication. In configuration files, this interface is referred to as the internal one.
• The other is associated with a server bound to the pod interface, designed to be exposed as a service or through an ingress. Communication on this interface is always encrypted using SSL. In configuration files, this interface is referred to as the external one.

Depending on the configuration, either one or both ports can be activated.

In the default configuration:

• Only the port bound to localhost is activated for the skCrd, skLdap, and skMerge modules.
• For the skAuth module, only the port bound to the pod interface is activated.

Sequence diagrams

Initial user connexion

Below is the sequence of events for a successful initial connection:

sequenceDiagram
  participant User
  participant kubectl
  participant kubectl-sk
  participant skAuth
  participant Api server
  autonumber
  User->>kubectl: The user issues a<br>kubectl command
  kubectl->>kubectl-sk: kubectl launches<br>the kubectl-sk<br>credential plugin
  kubectl-sk->>kubectl-sk: kubectl-sk searches for<br>a token in its local cache.<br> Not found in this case.
  kubectl-sk->>User: kubectl-sk prompts<br>for login and password
  User-->>kubectl-sk: User provides its credential
  kubectl-sk->>skAuth: HTTP GET REQ:<br>getToken()
  skAuth->>skAuth: skAuth calls<br>skMerge which<br>validates the user's<br>credentials and returns<br>user's information<br>Subsequently, a token is generated.
  skAuth-->>kubectl-sk: Token in<br>HTTP response
  kubectl-sk-->>kubectl: kubectl-sk returns<br>the token to kubectl<br>by printing it on<br>stdout and exits.
  kubectl->>Api server: kubectl issues the appropriate API call<br>with the provided bearer token
  Api server->>skAuth: The API Server<br>issues an<br>HTTP POST<br>with a<br>TokenReview<br>command
  skAuth-->>Api server: skAuth validates<br>the token and <br>provides user's<br>name and groups<br>in the response.
  Api server->>Api server: API Server validates<br>if user is allowed by<br>RBAC to perform<br>the requested action
  Api server-->>kubectl: API Server returns the action result
  kubectl-->>User: kubectl displays<br>the result and exits

Token renewal

Here is the sequence when a valid token is already present in the client's local cache.

sequenceDiagram
  participant User
  participant kubectl
  participant kubectl-sk
  participant skAuth
  participant Api server
  autonumber
  User->>kubectl: The user issues a<br>kubectl command
  kubectl->>kubectl-sk: kubectl launches<br>the kubectl-sk<br>credential plugin
  kubectl-sk->>kubectl-sk: kubeclt-sk lookups<br>for token in its <br>local cache.<br>Found in this case
  kubectl-sk->>kubectl-sk: Is the token still<br>valid against the<br>clientTokenTTL<br>YES in this case
  kubectl-sk-->>kubectl: kubectl-sk returns<br>the token to kubectl<br>by printing it on<br>stdout and exits.
  kubectl->>Api server: kubectl issues the appropriate API call<br>with the provided bearer token
  Api server->>skAuth: The API Server<br>issues an<br>HTTP POST<br>with a<br>TokenReview<br>command
  skAuth-->>Api server: skAuth validates<br>the token and <br>provides user's<br>name and groups<br>in the response.
  Api server->>Api server: API Server validates<br>if user is allowed by<br>RBAC to perform<br>the requested action
  Api server-->>kubectl: API Server returns the action result
  kubectl-->>User: kubectl displays<br>the result and exits

Here is the sequence when a token is still valid, but the short-lived local cache has expired.

sequenceDiagram
  participant User
  participant kubectl
  participant kubectl-sk
  participant skAuth
  participant Api server
  autonumber
  User->>kubectl: The user issues a<br>kubectl command
  kubectl->>kubectl-sk: kubectl launches<br>the kubectl-sk<br>credential plugin
  kubectl-sk->>kubectl-sk: kubeclt-sk lookups<br>for token in its <br>local cache.<br>Found in this case
  kubectl-sk->>kubectl-sk: Is the token still<br>valid against the<br>clientTokenTTL<br>NO in this case
  kubectl-sk->>skAuth: HTTP GET REQ:<br>validateToken()
  skAuth->>skAuth: skAuth check<br>if token is still valid.<br>Yes in this case
  skAuth-->>kubectl-sk: tokenValid response
  kubectl-sk-->>kubectl: kubectl-sk returns<br>the token to kubectl<br>by printing it on<br>stdout and exits.
  kubectl->>Api server: kubectl issues the appropriate API call<br>with the provided bearer token
  Api server->>skAuth: The API Server<br>issues an<br>HTTP POST<br>with a<br>TokenReview<br>command
  skAuth-->>Api server: skAuth validates<br>the token and <br>provides user's<br>name and groups<br>in the response.
  Api server->>Api server: API Server validates<br>if user is allowed by<br>RBAC to perform<br>the requested action
  Api server-->>kubectl: API Server returns the action result
  kubectl-->>User: kubectl displays<br>the result and exits

Token expired

Here is the sequence when a token has expired.

sequenceDiagram
  participant User
  participant kubectl
  participant kubectl-sk
  participant skAuth
  participant Api server
  autonumber
  User->>kubectl: The user issues a<br>kubectl command
  kubectl->>kubectl-sk: kubectl launches<br>the kubectl-sk<br>credential plugin
  kubectl-sk->>kubectl-sk: kubeclt-sk lookups<br>for token in its <br>local cache.<br>Found in this case
  kubectl-sk->>kubectl-sk: Is the token still<br>valid against the<br>clientTokenTTL<br>NO in this case
  kubectl-sk->>skAuth: HTTP GET REQ:<br>validateToken()
  skAuth->>skAuth: skAuth check<br>if token is still valid.<br>NO in this case
  skAuth-->>kubectl-sk: tokenInvalid<br>response
  kubectl-sk->>User: kubectl-sk prompts<br>for login and password
