Delegated users management

As the two configurations are quite similar, there is a lot of redundancy between this chapter and Two LDAP servers configuration chapter

Aim of this configuration is the ability to delegate the management of a certain set of users and/or their group bindings.

But, we want to restrict the rights of the administrator of the delegated space. Especially , we don't want them to be able to promote themself to global system administrator.

ldap

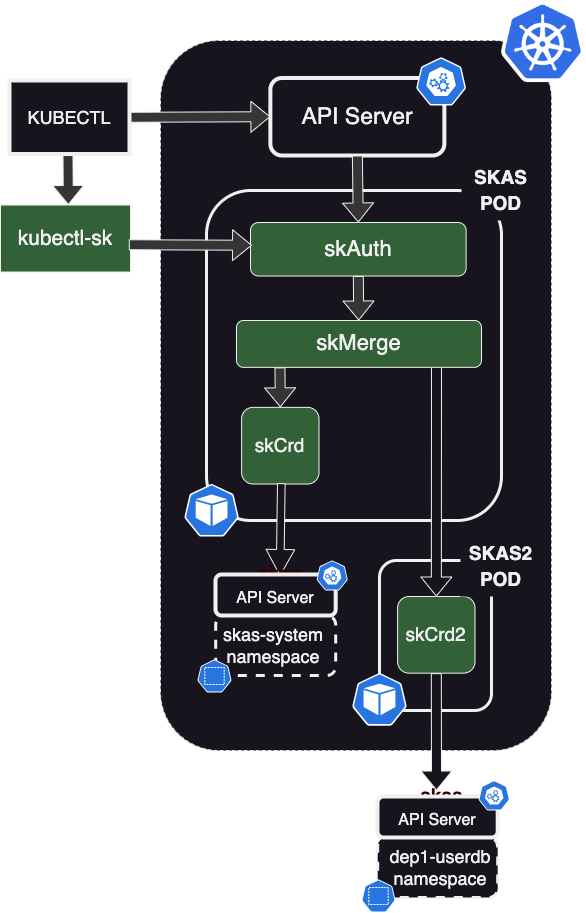

In this sample configuration, we will set up a separate user database for a department 'dep1'.

To achieve this, the solution is to create a specific namespace, dep1-userdb, which will host skusers and groupBinding SKAS resources.

To manage this namespace, we need to instantiate a second Identity Provider of type skCrd.

For the reasons described in Two LDAP servers configuration, we need to instantiate this POD as a separate Helm deployment, although using the same Helm Chart.

This configuration requires two steps:

  • Set up a new Helm deployment for the skas2 pod.
  • Reconfigure the skMerge module of the main SKAS pod to connect to this new IDP.

In the following, three variants of this configuration will be described: one with the connection in clear text and two secured options with network encryption and inter-pod authentication.

It is suggested that, even if your goal is to achieve a fully secured configuration, you begin by implementing the unsecured, simplest variant first. Then, you can incrementally modify it as described.

Clear text connection

Secondary POD configuration

Here is a sample values file for configuring the secondary POD:

values.skas2.yaml
skAuth:
  enabled: false
skMerge:
  enabled: false
skLdap:
  enabled: false

skCrd:
  enabled: true
  namespace: dep1-userdb

  adminGroups:
    - dep1-admin

  initialUser:
    login: dep1-admin
    passwordHash: $2a$10$ijE4zPB2nf49KhVzVJRJE.GPYBiSgnsAHM04YkBluNaB3Vy8Cwv.G  # admin
    commonNames: ["DEP1 administrator"]
    groups:
      - admin

  # By default, only internal (localhost) server is activated, to be called by another container running in the same pod.
  # Optionally, another server (external) can be activated, which can be accessed through a kubernetes service
  # In such case:
  # - A Client list should be provided to control access.
  # - ssl: true is strongly recommended.
  # - And protection against BFA should be activated (protected: true)
  exposure:
    internal:
      enabled: false
    external:
      enabled: true
      port: 7112
      ssl: false
      services:
        identity:
          disabled: false
          clients:
            - id: "*"
              secret: "*"
          protected: true

  • At the beginning of the file, we disable all modules except skCrd.

  • skCrd.namespace: dep1-userdb defines the namespace that this IDP will use to manage user information.

  • Then, we define an adminGroup: dep1-admin. The Helm chart will set up RBAC rules to allow members of this group to access SKAS user resources in the specified namespace.

  • Next, we create an initial admin user, dep1-admin, who belongs to the group admin (not dep1-admin. More on this later).

After that, there is the exposure section, which defines how this service will be exposed. (The default configuration exposes it to localhost in clear text).

  • exposure.internal.enabled: false disables the HTTP server bound to localhost.
  • exposure.external.enabled: true enables the HTTP server bound to the POD IP, on port 7112. SSL is disabled for this unsecure configuration.
  • Then, there is the configuration of the identity service to expose:
    • clients[] is a mechanism for validating who can access this service by providing an id and a secret (or password). The value "*" will disable this feature.
    • protected: true activates an internal mechanism against brute force attacks by introducing delays on unsuccessful connection attempts and limiting the number of simultaneous connections. There is no reason to disable it unless you suspect misbehavior.

To deploy this configuration, execute:

helm -n skas-system install skas2 skas/skas --values ./values.skas2.yaml

Note the `skas2' release name

The Helm chart will deploy the new pod(s), under the name skas2. it will also deploy an associated Kubernetes service.

Main pod reconfiguration

The second step is to reconfigure the main pod. Here is a sample of the appropriate configuration:

values.skas.yaml
skMerge:
  providers:
    - name: crd
    - name: crd_dep1
      groupPattern: "dep1-%s"

  providerInfo:
    crd:
      url: http://localhost:7012
    crd_dep1:
      url: http://skas2-crd.skas-system.svc

There is two entries aimed to configure a provider on the bottom of the skMerge module:

  • providers is a list of the connected providers, which allow you to define their behavior. For more information, refer to the Identity Provider chaining: Provider configuration chapter.
    The order of providers in this list is important.

    Note also the groupPattern: "dep1-%s".

  • providerInfo is a map that provides information on how to reach these providers.
    For crd, we use the default localhost port.
    For crd_dep1 we use the service created by the skas2 deployment.

The link between these two entries is of course the provider name.

The crd provider must be the first in the list. Otherwise, an administrator of dep1 may create a user with the same name as an existing administrator and gain authority over its password, to gain full Kubernetes access.

The reconfiguration must then be applied by executing this command:

helm -n skas-system upgrade skas skas/skas --values ./values.init.yaml --values ./values.skas.yaml

Don't forget to include the values.init.yaml file or merge it into the values.skas.yaml file. Additionally, if you have other values files, make sure to include them in each upgrade.

Also, remember to restart the pod(s) after making these configuration changes. You can find more information on how to do this in the Configuration: Pod restart section.

Test and Usage

Now, you can test your configuration. You can log in using the dep1-admin user created in the previous deployment:"

$ kubectl sk login
> Login:dep1-admin
> Password:
> logged successfully..

Please note that the password for this user is set to 'admin,' and it's highly recommended to change it as soon as possible using the kubectl sk password command.

Now, let's take a look at what our account looks like:

$ kubectl sk whoami
> USER         ID   GROUPS
> dep1-admin   0    dep1-admin

Note the group dep1-admin, which includes the prefix dep1- as configured in the groupPattern: "dep1-%s" setting above.

User management

As dep1-admin, you have management access to users in the dep1-userdb namespace:

$ kubectl sk -n dep1-userdb user create fred --commonName "Fred Astair" --password "GtaunPMgP5f"
> User 'fred' created in namespace 'dep1-userdb'.

$ kubectl sk -n dep1-userdb user bind fred managers
> GroupBinding 'fred.managers' created in namespace 'dep1-userdb'.

$ kubectl -n dep1-userdb get skusers
> NAME         COMMON NAMES             EMAILS   UID   COMMENT   DISABLED
> dep1-admin   ["DEP1 administrator"]
> fred         ["Fred Astair"]                                   false

$ kubectl -n dep1-userdb get groupbindings
> NAME               USER         GROUP
> dep1-admin-admin   dep1-admin   admin
> fred.managers      fred         managers

Then you can test the user 'fred'

$ kubectl sk login
> Login:fred
> Password:
> logged successfully..

$ kubectl sk whoami
> USER   ID   GROUPS
> fred   0    dep1-managers

_Note the group prefixed by dep1-. This will ensure no user managed by this identity provider can belong to some strategic groups such as skas-admin or system:masters.

Now, log back in as dep1-admin to ensure that we are limited to our namespace.

$ kubectl sk login dep1-admin
> Password:
> logged successfully..

$ kubectl -n skas-system get skusers
> Error from server (Forbidden): users.userdb.skasproject.io is forbidden: User "dep1-admin" cannot list resource "users" in API group "userdb.skasproject.io" in the namespace "skas-system"

$ kubectl get --all-namespaces skusers
> Error from server (Forbidden): users.userdb.skasproject.io is forbidden: User "dep1-admin" cannot list resource "users" in API group "userdb.skasproject.io" at the cluster scope

The sk user describe subcommand is also unauthorized because it is a cross-provider feature.

$ kubectl sk user describe fred
> Unauthorized!

Default namespace

Providing the namespace for each command can be tedious. It can be set as the default for both kubectl and kubectl-sk subcommands:"

kubectl config set-context --current --namespace=dep1-userdb

Then:

$ kubectl get skusers
> NAME         COMMON NAMES             EMAILS   UID   COMMENT   DISABLED
> dep1-admin   ["DEP1 administrator"]
> fred         ["Fred Astair"]                                   false

Alternatively, it can be set using an environment variable

export SKAS_NAMESPACE="dep1-userdb"

But this last method will only apply on kubectl-sk subcommands

User describe

As stated above, a dep1-admin user is not allowed to use the kubectl sk user describe subcommand.

This control is performed by the skAuth module, with a list of allowed groups. Here is a modified version of the values file that allows dep1-admin members to perform a user describe subcommand.

values.skas.yaml
skAuth:
  # Members of these group will be allowed to perform 'kubectl-sk user describe'
  # Also, they will be granted by RBAC to access token resources
  adminGroups:
    - skas-admin
    - dep1-admin

skMerge:
  providers:
    - name: crd
    - name: crd_dep1
      groupPattern: "dep1-%s"

  providerInfo:
    crd:
      url: http://localhost:7012
    crd_dep1:
      url: http://skas2-crd.skas-system.svc

As mentioned in the comment, these users will also be able to view and delete session tokens.

So, please be aware that setting a group as an admin for the skAuth module will allow certain operations outside the strict perimeter defined by the dep1-userdb namespace. However, members of such groups will still be prevented from listing or editing users and groupBindings outside of their initial namespace.

The SKAS admin user

And what about the initial SKAS global admin user? Is it able to manage the dep1-userdb database as well?

It depends on whether you have assigned this user to the system:master group. If you have, it will have full cluster access:

$ kubectl get -n dep1-userdb skusers
> NAME         COMMON NAMES             EMAILS   UID   COMMENT   DISABLED
> dep1-admin   ["DEP1 administrator"]
> fred         ["Fred Astair"]                                   false

You can remove this binding (then logout/login):

$ kubectl sk whoami
> USER    ID   GROUPS
> admin   0    skas-admin,system:masters

$ kubectl sk user unbind admin system:masters
> GroupBinding 'admin.system.masters' in namespace 'skas-system' has been deleted.

$ kubectl sk logout
> Bye!

$ kubectl sk login admin
> Password:
> logged successfully..

$ kubectl sk whoami
> USER    ID   GROUPS
> admin   0    skas-admin

Now, access should be denied:

$ kubectl get -n dep1-userdb skusers
> Error from server (Forbidden): users.userdb.skasproject.io is forbidden: User "admin" cannot list resource "users" in API group "userdb.skasproject.io" in the namespace "dep1-userdb"

But, as the SKAS admin, you can promote yourself as a member of the dep1-admin group.

$ kubectl sk user bind admin dep1-admin
> GroupBinding 'admin.dep1-admin' created in namespace 'skas-system'.

$ kubectl sk logout
> Bye!

$ kubectl sk login
> Login:admin
> Password:
> logged successfully..

$ kubectl sk whoami
> USER    ID   GROUPS
> admin   0    dep1-admin,skas-admin

$ kubectl get -n dep1-userdb skusers
> NAME         COMMON NAMES             EMAILS   UID   COMMENT   DISABLED
> dep1-admin   ["DEP1 administrator"]
> fred         ["Fred Astair"]                                   false

Securing connection

It should be noted that unencrypted passwords will transit through the link between the two pods. Therefore, setting up encryption is a must-have.

Secondary POD configuration

Here is the modified version for the skas2 pod configuration:

values.skas2.yaml
skAuth:
  enabled: false
skMerge:
  enabled: false
skLdap:
  enabled: false

clusterIssuer: your-cluster-issuer

skCrd:
  enabled: true
  namespace: dep1-userdb

  adminGroups:
    - dep1-admin

  initialUser:
    login: dep1-admin
    passwordHash: $2a$10$ijE4zPB2nf49KhVzVJRJE.GPYBiSgnsAHM04YkBluNaB3Vy8Cwv.G  # admin
    commonNames: ["DEP1 administrator"]
    groups:
      - admin

  # By default, only internal (localhost) server is activated, to be called by another container running in the same pod.
  # Optionally, another server (external) can be activated, which can be accessed through a kubernetes service
  # In such case:
  # - A Client list should be provided to control access.
  # - ssl: true is strongly recommended.
  # - And protection against BFA should be activated (protected: true)
  exposure:
    internal:
      enabled: false
    external:
      enabled: true
      port: 7112
      ssl: true
      services:
        identity:
          disabled: false
          clients:
            - id: "skMerge"
              secret: "aSharedSecret"
          protected: true

The differences are the following:

  • There is a clusterIssuer definition to enable the generation of a certificate. (It is assumed here that cert-manager is deployed in the cluster).
  • exposure.external.ssl is set to true. This will also lead to the generation of the server certificate.
  • The service.identity.clients authentication is also activated. The id and secret values will have to be provided by the skMerge client.

To deploy this configuration:

helm -n skas-system install skas2 skas/skas --values ./values.skas2.yaml

Note the `skas2' release name

The Helm chart will deploy the new pod(s) with the name skas2. It will also deploy an associated Kubernetes service and submit a cert-manager.io/v1/Certificate request.

Main pod reconfiguration

Here is the modified version for the main SKAS POD configuration:

values.skas.yaml
skMerge:
  providers:
    - name: crd
    - name: crd_dep1
      groupPattern: "dep1-%s"

  providerInfo:
    crd:
      url: http://localhost:7012
    crd_dep1:
      url: https://skas2-crd.skas-system.svc
      rootCaPath: /tmp/cert/skas2/ca.crt
      insecureSkipVerify: false
      clientAuth:
        id: skMerge
        secret: aSharedSecret

  extraSecrets:
    - secret: skas2-crd-cert
      volume: skas2-cert
      mountPath: /tmp/cert/skas2

The providerInfo.crd_dep1 has been modified for SSL and authenticated connection:

  • url begins with https.
  • clientAuth provides information to authenticate against the skas2 pod.
  • insecureSkipVerify is set to false, as we want to check certificate validity.
  • rootCaPath is set to access the ca.crt, the CA validating the skas2 server certificate.

As stated above, during the deployment of the skas2 secondary POD, a server certificate has been generated to allow SSL enabled services. This certificate is stored in a secret (of type kubernetes.io/tls) named skas2-crd-cert. Alongside the private/public key pair, it also contains the root Certificate Authority under the nameca.crt.

The skMerge.extraSecrets subsection instructs the POD to mount this secret at the defined location. The property skMerge.providerInfo.crd_dep1.rootCaPath can now reference the mounted value.

Then, the reconfiguration must be applied:

helm -n skas-system upgrade skas skas/skas --values ./values.init.yaml --values ./values.skas.yaml

Don't forget to include the values.init.yaml file or merge it into the values.skas.yaml file. Additionally, if you have other values files, make sure to include them in each upgrade.

Also, remember to restart the pod(s) after making these configuration changes. You can find more information on how to do this in the Configuration: Pod restart section.

You can now test again your configuration, as described above

Using a Kubernetes secrets

There is still a security issue because the shared secret (aSharedSecret) is stored in plain text in both values files, which could lead to it being accidentally committed to a version control system.

The best practice is to store the secret value in a Kubernetes secret resource, like this:

---
apiVersion: v1
kind: Secret
metadata:
  name: skas2-client-secret
  namespace: skas-system
data:
  clientSecret: Sk1rbkNyYW5WV1YwR0E5
type: Opaque

Where data.clientSecret is the secret encoded in base64.

There are several solutions to generate such a secret value. One can use Helm with a random generator function. Another one is to use a Secret generator."

Secondary POD configuration

To use this secret, here is the new modified version of the skas2 POD configuration:

values.skas2.yaml
skAuth:
  enabled: false
skMerge:
  enabled: false
skLdap:
  enabled: false

clusterIssuer: your-cluster-issuer

skCrd:
  enabled: true
  namespace: dep1-userdb

  adminGroups:
    - dep1-admin

  initialUser:
    login: dep1-admin
    passwordHash: $2a$10$ijE4zPB2nf49KhVzVJRJE.GPYBiSgnsAHM04YkBluNaB3Vy8Cwv.G  # admin
    commonNames: ["DEP1 administrator"]
    groups:
      - admin

  # By default, only internal (localhost) server is activated, to be called by another container running in the same pod.
  # Optionally, another server (external) can be activated, which can be accessed through a kubernetes service
  # In such case:
  # - A Client list should be provided to control access.
  # - ssl: true is strongly recommended.
  # - And protection against BFA should be activated (protected: true)
  exposure:
    internal:
      enabled: false
    external:
      enabled: true
      port: 7112
      ssl: true
      services:
        identity:
          disabled: false
          clients:
            - id: "skMerge"
              secret: ${SKAS2_CLIENT_SECRET}
          protected: true

  extraEnv:
    - name: SKAS2_CLIENT_SECRET
      valueFrom:
        secretKeyRef:
          name: skas2-client-secret
          key: clientSecret

The modifications are the following:

  • The skCrd.extraEnv subsection injects the secret value as an environment variable into the container.
  • the skCrd.exposure.external.services.identity.clients[0].secret retrieves its value through this environment variable.

Most of the values provided by the Helm chart end up inside a ConfigMap, which is then loaded by the SKAS executable. Environment variable interpolation occurs during this loading process.

Main pod reconfiguration

Here is the modified version of the main SKAS pod configuration, which incorporates secret handling:

values.skas.yaml
skMerge:
  providers:
    - name: crd
    - name: crd_dep1
      groupPattern: "dep1-%s"

  providerInfo:
    crd:
      url: http://localhost:7012
    crd_dep1:
      url: https://skas2-crd.skas-system.svc
      rootCaPath: /tmp/cert/skas2/ca.crt
      insecureSkipVerify: false
      clientAuth:
        id: skMerge
        secret: ${SKAS2_CLIENT_SECRET}

  extraEnv:
    - name: SKAS2_CLIENT_SECRET
      valueFrom:
        secretKeyRef:
          name: skas2-client-secret
          key: clientSecret

  extraSecrets:
    - secret: skas2-crd-cert
      volume: skas2-cert
      mountPath: /tmp/cert/skas2

The modifications for the skMerge module are the same as those made for the SKAS2 POD.

Set up a meta helm chart

Up to this point, we have configured our deployment by performing two closely related Helm deployments. To simplify automation, it can be helpful to create a 'meta chart,' a chart that includes other charts as dependencies.

Such a chart will have the following layout:

.
|-- Chart.yaml
|-- templates
|   `-- stringsecret.yaml
`-- values.yaml

In this example, we will implement encryption and inter-pod authentication.

The Chart.yaml file defines the meta-chart skas-skas2-meta. It has two dependencies that deploy the same Helm chart but with different values (as shown below). Please note the alias: skas2 in the second deployment.

Chart.yaml
apiVersion: v2
name: skas-skas2-meta
version: 0.1.0
dependencies:
- name: skas
  version: 0.2.1
  repository: https://skasproject.github.io/skas-charts

- name: skas
  alias: skas2
  version: 0.2.1
  repository: https://skasproject.github.io/skas-charts

The following manifest will generate the shared secret required for inter-pod authentication.

templates/stringsecret.yaml
---
apiVersion: "secretgenerator.mittwald.de/v1alpha1"
kind: "StringSecret"
metadata:
  name: skas2-client-secret
  namespace: skas-system
spec:
  fields:
    - fieldName: "clientSecret"
      encoding: "base64"
      length: "15"

And here is the global values.yaml file:

values.yaml
skas:
  skAuth:
    exposure:
      external:
        ingress:
          host: skas.ingress.kspray6
    kubeconfig:
      context:
        name: skas@kspray6
      cluster:
        apiServerUrl: https://kubernetes.ingress.kspray6

  skMerge:
    providers:
      - name: crd
      - name: crd_dep1
        groupPattern: "dep1-%s"

    providerInfo:
      crd:
        url: http://localhost:7012
      crd_dep1:
        url: https://skas-skas2-crd.skas-system.svc # Was https://skas2-crd.skas-system.svc
        rootCaPath: /tmp/cert/skas2/ca.crt
        insecureSkipVerify: false
        clientAuth:
          id: skMerge
          secret: ${SKAS2_CLIENT_SECRET}

    extraEnv:
      - name: SKAS2_CLIENT_SECRET
        valueFrom:
          secretKeyRef:
            name: skas2-client-secret
            key: clientSecret

    extraSecrets:
      - secret: skas-skas2-crd-cert  # Was skas2-crd-cert
        volume: skas2-cert
        mountPath: /tmp/cert/skas2


skas2:
  skAuth:
    enabled: false
  skMerge:
    enabled: false
  skLdap:
    enabled: false

  clusterIssuer: your-cluster-issuer

  skCrd:
    enabled: true
    namespace: dep1-userdb

    adminGroups:
      - dep1-admin

    initialUser:
      login: dep1-admin
      passwordHash: $2a$10$ijE4zPB2nf49KhVzVJRJE.GPYBiSgnsAHM04YkBluNaB3Vy8Cwv.G  # admin
      commonNames: [ "DEP1 administrator" ]
      groups:
        - admin

    # By default, only internal (localhost) server is activated, to be called by another container running in the same pod.
    # Optionally, another server (external) can be activated, which can be accessed through a kubernetes service
    # In such case:
    # - A Client list should be provided to control access.
    # - ssl: true is strongly recommended.
    # - And protection against BFA should be activated (protected: true)
    exposure:
      internal:
        enabled: false
      external:
        enabled: true
        port: 7112
        ssl: true
        services:
          identity:
            disabled: false
            clients:
              - id: "skMerge"
                secret: ${SKAS2_CLIENT_SECRET}
            protected: true

    extraEnv:
      - name: SKAS2_CLIENT_SECRET
        valueFrom:
          secretKeyRef:
            name: skas2-client-secret
            key: clientSecret

There are two blocks: skas and skas2, matching the name or alias in the Chart.yaml file.

These two blocks hold the same definitions as the ones defined in the original configuration, with two differences:

  • skas.skMerge.providerInfo.crd_dep1.url: https://skas-skas2-crd.skas-system.svc
  • skas.skMerge.extraSecrets[0].secret: skas-skas2-crd-cert

This is to accommodate service and secret name changes due to aliasing of the second dependency.

Then, to launch the deployment, in the same folder as Chart.yaml, execute:

helm dependency build && helm -n skas-system upgrade -i skas .
