Two LDAP servers configuration

Adding a second LDAP server

As the two configurations are quite similar, there is a lot of redundancy between this chapter and Delegated users management chapter

ldap

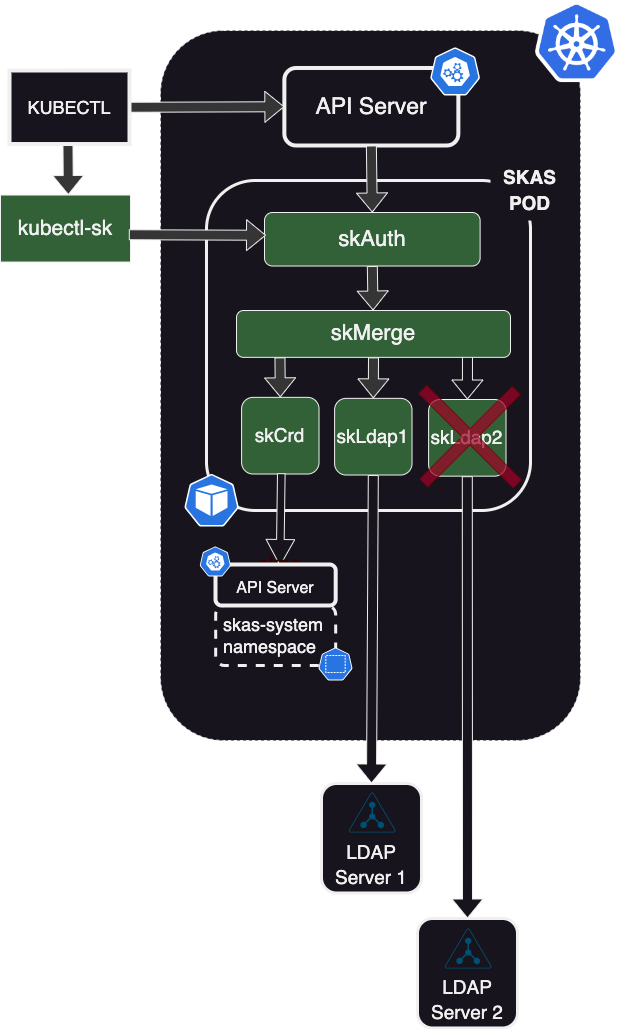

The obvious solution to add a second LDAP server would be to duplicate the skLdap Identity Provider container, hook it under the skMerge module and link it to our second LDAP server.

Unfortunately, the provided SKAS helm chart does not allow several instance of whatever container. Doing so would be possible, but at the price of a more complex chart.

A possible solution would be to modify the chart by adding this second LDAP IDP. However, it's best to avoid such specific forks if possible.

Overview

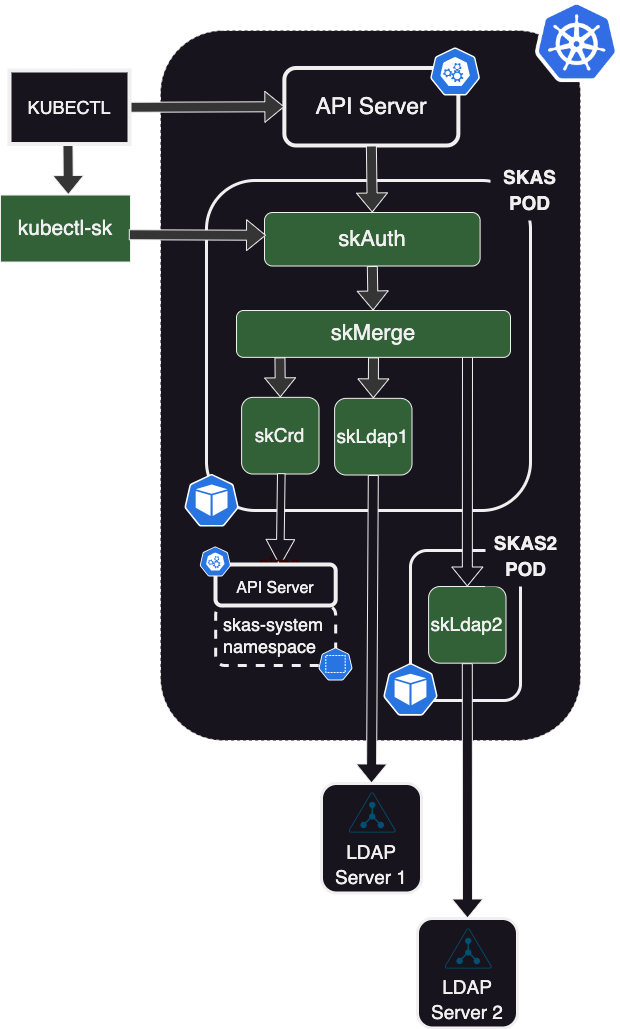

A more convenient solution will be to create another POD hosting only the new LDAP IDP.

This pod will be instantiated using the same SKAS helm chart, under another release name. And all other modules than skLdap will be disabled.

When all modules are in the same POD, inter-module communication use the localhost internal POD network. In this case, as the second skLdap module run in another POD, communication must go through a kubernetes service.

This configuration requires two steps:

  • Setup a new Helm deployment for the skas2 secondary pod.
  • Reconfigure the skMerge module of the main SKAS pod to connect to this new IDP.

In the following section, we will describe three variants of this configuration: one with a clear text connection and two secured variants with network encryption and inter-pod authentication.

We recommend starting with the unsecured, simplest variant even if your ultimate goal is a fully secured configuration. You can then incrementally modify it as described.

Clear text connection

Secondary POD configuration

Here is a sample values file for configuring the secondary POD:

values.skas2.yaml
skAuth:
  enabled: false
skMerge:
  enabled: false
skCrd:
  enabled: false

skLdap:
  enabled: true
  # --------------------------------- LDAP configuration
  ldap:
    host: ldap2.mydomain.internal
    insecureNoSSL: false
    rootCaData: "LS0tLS1CRUdJTiBDRVJUSUZ................................lRJRklDQVRFLS0tLS0K"
    bindDN: cn=Manager,dc=mydomain2,dc=internal
    bindPW: admin123
    groupSearch:
      baseDN: ou=Groups,dc=mydomain2,dc=internal
      filter: (objectClass=posixgroup)
      linkGroupAttr: memberUid
      linkUserAttr: uid
      nameAttr: cn
    timeoutSec: 10
    userSearch:
      baseDN: ou=Users,dc=mydomain,dc=internal
      cnAttr: cn
      emailAttr: mail
      filter: (objectClass=inetOrgPerson)
      loginAttr: uid
      numericalIdAttr: uidNumber


  # By default, only internal (localhost) server is activated, to be called by another container running in the same pod.
  # Optionally, another server (external) can be activated, which can be accessed through a kubernetes service
  # In such case:
  # - A Client list should be provided to control access.
  # - ssl: true is strongly recommended.
  # - And protection against BFA should be activated (protected: true)
  exposure:
    internal:
      enabled: false
    external:
      enabled: true
      port: 7113
      ssl: false
      services:
        identity:
          disabled: false
          clients:
            - id: "*"
              secret: "*"
          protected: true

At the beginning of the file, we disable all modules except for skLdap.

Then, you will need to adjust the configuration for the second LDAP server according to your specific context. Please refer to LDAP Setup for guidance."

Then, there is the exposure part, who define how this service will be exposed. (The default configuration is expose to localhost in clear text)

  • exposure.internal.enabled: false shutdown the HTTP server bound to localhost.
  • exposure.external.enabled: true set up the HTTP server bound on the POD IP. This run on port 7113 with no SSL.
  • Then the is the configuration of the identity service to expose:
    • clients[] is a mechanism to validate who is able to access this service, by providing an id and a secret (or password). the values "*" will disable this feature.
    • protected: true activate an internal mechanism against attacks of type 'Brut force', by introducing delays on unsuccessful connection attempts, and by limiting the number of simultaneous connections. There is no reason to disable it, except if you suspect a misbehavior.

To deploy this configuration, execute:

helm -n skas-system install skas2 skas/skas --values ./values.skas2.yaml

Note the `skas2' release name

The Helm chart will deploy the new pod(s) under the name skas2 and also create an associated Kubernetes service.

Main pod reconfiguration

The second step is to reconfigure the main pod. Here is a sample of the appropriate configuration:

values.skas.yaml
skMerge:
  providers:
    - name: crd
    - name: ldap1
      groupPattern: "dep1_%s"
    - name: ldap2
      groupPattern: "dep2_%s"

  providerInfo:
    crd:
      url: http://localhost:7012
    ldap1:
      url: http://localhost:7013
    ldap2:
      url: http://skas2-ldap.skas-system.svc

skLdap:
  enabled: true
  # --------------------------------- LDAP configuration
  ldap:
    host: ldap1.mydomain.internal
    insecureNoSSL: false
    rootCaData: "LS0tLS1CRUdJTiBDRVJUSUZ................................lRJRklDQVRFLS0tLS0K"
    bindDN: cn=Manager,dc=mydomain1,dc=internal
    bindPW: admin123
    groupSearch:
      baseDN: ou=Groups,dc=mydomain1,dc=internal
      filter: (objectClass=posixgroup)
      linkGroupAttr: memberUid
      linkUserAttr: uid
      nameAttr: cn
    timeoutSec: 10
    userSearch:
      baseDN: ou=Users,dc=mydomain,dc=internal
      cnAttr: cn
      emailAttr: mail
      filter: (objectClass=inetOrgPerson)
      loginAttr: uid
      numericalIdAttr: uidNumber

At the top of the skMerge module, there are two entries designed to configure a provider:

  • providers is a list of connected providers, which allows you to define their behavior. The order of providers in this list is important. For more information, refer to the Identity Provider chaining: Provider configuration chapter.

  • providerInfo is a map that provides information on how to reach these providers. For crd and ldap1, we use the default localhost port. For ldap2, we use the service created by the skas2 deployment.

The link between these two entries is, of course, the provider name.

Next, there is the configuration for the primary LDAP server, which must be adapted to your specific configuration."

The reconfiguration must then be applied by executing this command:

helm -n skas-system upgrade skas skas/skas --values ./values.init.yaml --values ./values.skas.yaml

Don't forget to include the values.init.yaml file or merge it into the values.skas.yaml file. Additionally, if you have other values files, make sure to include them in each upgrade.

Also, remember to restart the pod(s) after making these configuration changes. You can find more information on how to do this in the Configuration: Pod restart section.

Test

Now, you can test your configuration:

$ kubectl sk user describe nobody  --explain
> USER     STATUS         UID   GROUPS   EMAILS   COMMON NAMES   AUTH
> nobody   userNotFound   0

> Detail:
> PROVIDER   STATUS         UID   GROUPS   EMAILS   COMMON NAMES
> crd        userNotFound   0
> ldap1      userNotFound   0
> ldap2      userNotFound   0

You can check that both LDAP servers are taken into account. This also ensures that connections to both LDAP servers are effective, as a provider is critical by default (Refers to the Identity Provider chaining: Provider configuration chapter

Of course, another test will be to describe some users existing in your LDAP servers.

Securing connection

It should be noted that unencrypted passwords will transit through the link between the two pods. Therefore, setting up encryption is a must-have.

Secondary POD configuration

Here is the modified version for the skas2 pod configuration:

values.skas2.yaml
skAuth:
  enabled: false
skMerge:
  enabled: false
skCrd:
  enabled: false

clusterIssuer: your-cluster-issuer

skLdap:
  enabled: true
  # --------------------------------- LDAP configuration
  ldap:
    host: ldap2.mydomain.internal
    insecureNoSSL: false
    rootCaData: "LS0tLS1CRUdJTiBDRVJUSUZ................................lRJRklDQVRFLS0tLS0K"
    bindDN: cn=Manager,dc=mydomain2,dc=internal
    bindPW: admin123
    groupSearch:
      baseDN: ou=Groups,dc=mydomain2,dc=internal
      filter: (objectClass=posixgroup)
      linkGroupAttr: memberUid
      linkUserAttr: uid
      nameAttr: cn
    timeoutSec: 10
    userSearch:
      baseDN: ou=Users,dc=mydomain,dc=internal
      cnAttr: cn
      emailAttr: mail
      filter: (objectClass=inetOrgPerson)
      loginAttr: uid
      numericalIdAttr: uidNumber


  # By default, only internal (localhost) server is activated, to be called by another container running in the same pod.
  # Optionally, another server (external) can be activated, which can be accessed through a kubernetes service
  # In such case:
  # - A Client list should be provided to control access.
  # - ssl: true is strongly recommended.
  # - And protection against BFA should be activated (protected: true)
  exposure:
    internal:
      enabled: false
    external:
      enabled: true
      port: 7113
      ssl: true
      services:
        identity:
          disabled: false
          clients:
            - id: skMerge
              secret: aSharedSecret
          protected: true

The differences are as follows:

  • There is a clusterIssuer definition to enable the generation of a certificate. (It is assumed here that cert-manager is deployed in the cluster).
  • exposure.external.ssl is set to true. This will also lead to the generation of the server certificate.
  • The service.identity.clients authentication is also activated. The id and secret values will have to be provided by the skMerge client.

To deploy this configuration:

helm -n skas-system install skas2 skas/skas --values ./values.skas2.yaml

Note the `skas2' release name

The Helm chart will deploy the new pod(s) with the name skas2. It will also deploy an associated Kubernetes service and submit a cert-manager.io/v1/Certificate request.

Main pod reconfiguration

Here is the modified version for the main SKAS POD configuration:

values.skas.yaml
skMerge:
  providers:
    - name: crd
    - name: ldap1
      groupPattern: "dep1_%s"
    - name: ldap2
      groupPattern: "dep2_%s"

  providerInfo:
    crd:
      url: http://localhost:7012
    ldap1:
      url: http://localhost:7013
    ldap2:
      url: https://skas2-ldap.skas-system.svc
      rootCaPath: /tmp/cert/ldap2/ca.crt
      insecureSkipVerify: false
      clientAuth:
        id: skMerge
        secret: aSharedSecret

  extraSecrets:
    - secret: skas2-ldap-cert
      volume: ldap2-cert
      mountPath: /tmp/cert/ldap2

skLdap:
  enabled: true
  # --------------------------------- LDAP configuration
  ldap:
    host: ldap1.mydomain.internal
    insecureNoSSL: false
    rootCaData: "LS0tLS1CRUdJTiBDRVJUSUZ................................lRJRklDQVRFLS0tLS0K"
    bindDN: cn=Manager,dc=mydomain1,dc=internal
    bindPW: admin123
    groupSearch:
      baseDN: ou=Groups,dc=mydomain1,dc=internal
      filter: (objectClass=posixgroup)
      linkGroupAttr: memberUid
      linkUserAttr: uid
      nameAttr: cn
    timeoutSec: 10
    userSearch:
      baseDN: ou=Users,dc=mydomain,dc=internal
      cnAttr: cn
      emailAttr: mail
      filter: (objectClass=inetOrgPerson)
      loginAttr: uid
      numericalIdAttr: uidNumber

The providerInfo.ldap2 has been modified for SSL and authenticated connection:

  • url begins with https.
  • clientAuth provides information to authenticate against the skLdap2 pod.
  • insecureSkipVerify is set to false, as we want to check certificate validity.
  • rootCaPath is set to access the ca.crt, the CA validating the skLdap2 server certificate.

As stated above, during the deployment of the skas2 secondary POD, a server certificate was generated to allow SSL-enabled services. This certificate is stored in a secret (of type kubernetes.io/tls) named skas2-ldap-cert. Alongside the private/public key pair, it also contains the root Certificate Authority under the name ca.crt.

The skMerge.extraSecrets subsection instructs the POD to mount this secret at the defined location. The property skMerge.providerInfo.ldap2.rootCaPath can now reference the mounted value.

Then, the reconfiguration must be applied:

helm -n skas-system upgrade skas skas/skas --values ./values.init.yaml --values ./values.skas.yaml

Don't forget to include the values.init.yaml file or merge it into the values.skas.yaml file. Additionally, if you have other values files, make sure to include them in each upgrade.

Also, remember to restart the pod(s) after making these configuration changes. You can find more information on how to do this in the Configuration: Pod restart section.

You can now test again your configuration, as described above

Using a Kubernetes secrets

There is still a security issue because the shared secret (aSharedSecret) is stored in plain text in both values files, which could lead to it being accidentally committed to a version control system.

The best practice is to store the secret value in a Kubernetes secret resource, like this:

---
apiVersion: v1
kind: Secret
metadata:
  name: skas2-client-secret
  namespace: skas-system
data:
  clientSecret: Sk1rbkNyYW5WV1YwR0E5
type: Opaque

Where data.clientSecret is the secret encoded in base64.

There are several solutions to generate such a secret value. One can use Helm with a random generator function. Another one is to use a Secret generator."

Secondary POD configuration

To use this secret, here is the new modified version of the skas2 POD configuration:

values.skas2.yaml
skAuth:
  enabled: false
skMerge:
  enabled: false
skCrd:
  enabled: false

clusterIssuer: your-cluster-issuer

skLdap:
  enabled: true
  # --------------------------------- LDAP configuration
  ldap:
    host: ldap2.mydomain.internal
    insecureNoSSL: false
    rootCaData: "LS0tLS1CRUdJTiBDRVJUSUZ................................lRJRklDQVRFLS0tLS0K"
    bindDN: cn=Manager,dc=mydomain2,dc=internal
    bindPW: admin123
    groupSearch:
      baseDN: ou=Groups,dc=mydomain2,dc=internal
      filter: (objectClass=posixgroup)
      linkGroupAttr: memberUid
      linkUserAttr: uid
      nameAttr: cn
    timeoutSec: 10
    userSearch:
      baseDN: ou=Users,dc=mydomain,dc=internal
      cnAttr: cn
      emailAttr: mail
      filter: (objectClass=inetOrgPerson)
      loginAttr: uid
      numericalIdAttr: uidNumber

  # By default, only internal (localhost) server is activated, to be called by another container running in the same pod.
  # Optionally, another server (external) can be activated, which can be accessed through a kubernetes service
  # In such case:
  # - A Client list should be provided to control access.
  # - ssl: true is strongly recommended.
  # - And protection against BFA should be activated (protected: true)
  exposure:
    internal:
      enabled: false
    external:
      enabled: true
      port: 7113
      ssl: true
      services:
        identity:
          disabled: false
          clients:
            - id: skMerge
              secret: ${SKAS2_CLIENT_SECRET}
          protected: true

  extraEnv:
    - name: SKAS2_CLIENT_SECRET
      valueFrom:
        secretKeyRef:
          name: skas2-client-secret
          key: clientSecret

The modifications are as follows:

  • The skLdap.extraEnv subsection injects the secret value as an environment variable into the container.
  • The skLdap.exposure.external.services.identity.clients[0].secret retrieves its value through this environment variable.

Most of the values provided by the Helm chart end up inside a ConfigMap, which is then loaded by the SKAS executable. Environment variable interpolation occurs during this loading process.

Main pod reconfiguration

Here is the modified version of the main SKAS pod configuration, which incorporates secret handling:

values.skas.yaml
skMerge:
  providers:
    - name: crd
    - name: ldap1
      groupPattern: "dep1_%s"
    - name: ldap2
      groupPattern: "dep2_%s"

  providerInfo:
    crd:
      url: http://localhost:7012
    ldap1:
      url: http://localhost:7013
    ldap2:
      url: https://skas2-ldap.skas-system.svc
      rootCaPath: /tmp/cert/ldap2/ca.crt
      insecureSkipVerify: false
      clientAuth:
        id: skMerge
        secret: ${SKAS2_CLIENT_SECRET}

  extraEnv:
    - name: SKAS2_CLIENT_SECRET
      valueFrom:
        secretKeyRef:
          name: skas2-client-secret
          key: clientSecret

  extraSecrets:
    - secret: skas2-ldap-cert
      volume: ldap2-cert
      mountPath: /tmp/cert/ldap2

skLdap:
  enabled: true
  # --------------------------------- LDAP configuration
  ldap:
    host: ldap1.mydomain.internal
    insecureNoSSL: false
    rootCaData: "LS0tLS1CRUdJTiBDRVJUSUZ................................lRJRklDQVRFLS0tLS0K"
    bindDN: cn=Manager,dc=mydomain1,dc=internal
    bindPW: admin123
    groupSearch:
      baseDN: ou=Groups,dc=mydomain1,dc=internal
      filter: (objectClass=posixgroup)
      linkGroupAttr: memberUid
      linkUserAttr: uid
      nameAttr: cn
    timeoutSec: 10
    userSearch:
      baseDN: ou=Users,dc=mydomain,dc=internal
      cnAttr: cn
      emailAttr: mail
      filter: (objectClass=inetOrgPerson)
      loginAttr: uid
      numericalIdAttr: uidNumber

The modifications for the skMerge module are the same as those made for the SKAS2 POD.

Set up a meta helm chart

Up to this point, we have configured our deployment by performing two closely related Helm deployments. To simplify automation, it can be helpful to create a 'meta chart,' a chart that includes other charts as dependencies.

Such a chart will have the following layout:

.
|-- Chart.yaml
|-- templates
|   `-- stringsecret.yaml
`-- values.yaml

In this example, we will implement encryption and inter-pod authentication.

The Chart.yaml file defines the meta-chart skas-skas2-meta. It has two dependencies that deploy the same Helm chart but with different values (as shown below). Please note the alias: skas2 in the second deployment.

Chart.yaml
apiVersion: v2
name: skas-skas2-meta
version: 0.1.0
dependencies:
- name: skas
  version: 0.2.1
  repository: https://skasproject.github.io/skas-charts

- name: skas
  alias: skas2
  version: 0.2.1
  repository: https://skasproject.github.io/skas-charts

The following manifest will generate the shared secret required for inter-pod authentication.

templates/stringsecret.yaml
---
apiVersion: "secretgenerator.mittwald.de/v1alpha1"
kind: "StringSecret"
metadata:
  name: skas2-client-secret
  namespace: skas-system
spec:
  fields:
    - fieldName: "clientSecret"
      encoding: "base64"
      length: "15"

And here is the global values.yaml file:

values.yaml
# ======================================================== Main SKAS Pod configuration
skas:
  clusterIssuer: your-cluster-issuer

  skAuth:
    exposure:
      external:
        ingress:
          host: skas.ingress.kspray6
    kubeconfig:
      context:
        name: skas@kspray6
      cluster:
        apiServerUrl: https://kubernetes.ingress.kspray6

  skMerge:
    providers:
      - name: crd
      - name: ldap1
        groupPattern: "dep1_%s"
      - name: ldap2
        groupPattern: "dep2_%s"

    providerInfo:
      crd:
        url: http://localhost:7012
      ldap1:
        url: http://localhost:7013
      ldap2:
        url: https://skas-skas2-ldap.skas-system.svc # Was https://skas2-ldap.skas-system.svc
        rootCaPath: /tmp/cert/ldap2/ca.crt
        insecureSkipVerify: false
        clientAuth:
          id: skMerge
          secret: ${LDAP2_CLIENT_SECRET}

    extraEnv:
      - name: LDAP2_CLIENT_SECRET
        valueFrom:
          secretKeyRef:
            name: ldap2-client-secret
            key: clientSecret

    extraSecrets:
      - secret: skas-skas2-ldap-cert # Was skas2-ldap-cert
        volume: ldap2-cert
        mountPath: /tmp/cert/ldap2

  skLdap:
    enabled: true
    # --------------------------------- LDAP configuration
    ldap:
      host: ldap1.mydomain.internal
      insecureNoSSL: false
      rootCaData: "LS0tLS1CRUdJTiBDRVJUSUZ................................lRJRklDQVRFLS0tLS0K"
      bindDN: cn=Manager,dc=mydomain1,dc=internal
      bindPW: admin123
      groupSearch:
        baseDN: ou=Groups,dc=mydomain1,dc=internal
        filter: (objectClass=posixgroup)
        linkGroupAttr: memberUid
        linkUserAttr: uid
        nameAttr: cn
      timeoutSec: 10
      userSearch:
        baseDN: ou=Users,dc=mydomain,dc=internal
        cnAttr: cn
        emailAttr: mail
        filter: (objectClass=inetOrgPerson)
        loginAttr: uid
        numericalIdAttr: uidNumber

# ======================================================== SKAS2 Pod configuration
skas2:
  skAuth:
    enabled: false

  skMerge:
    enabled: false

  skCrd:
    enabled: false

  clusterIssuer: your-cluster-issuer

  skLdap:
    enabled: true
    # --------------------------------- LDAP configuration
    ldap:
      host: ldap2.mydomain.internal
      insecureNoSSL: false
      rootCaData: "LS0tLS1CRUdJTiBDRVJUSUZ................................lRJRklDQVRFLS0tLS0K"
      bindDN: cn=Manager,dc=mydomain2,dc=internal
      bindPW: admin123
      groupSearch:
        baseDN: ou=Groups,dc=mydomain2,dc=internal
        filter: (objectClass=posixgroup)
        linkGroupAttr: memberUid
        linkUserAttr: uid
        nameAttr: cn
      timeoutSec: 10
      userSearch:
        baseDN: ou=Users,dc=mydomain,dc=internal
        cnAttr: cn
        emailAttr: mail
        filter: (objectClass=inetOrgPerson)
        loginAttr: uid
       numericalIdAttr: uidNumber


    # By default, only internal (localhost) server is activated, to be called by another container running in the same pod.
    # Optionally, another server (external) can be activated, which can be accessed through a kubernetes service
    # In such case:
    # - A Client list should be provided to control access.
    # - ssl: true is strongly recommended.
    # - And protection against BFA should be activated (protected: true)
    exposure:
      internal:
        enabled: false
      external:
        enabled: true
        port: 7113
        ssl: true
        services:
          identity:
            disabled: false
            clients:
              - id: skMerge
                secret: ${LDAP2_CLIENT_SECRET}
            protected: true

    extraEnv:
      - name: LDAP2_CLIENT_SECRET
        valueFrom:
          secretKeyRef:
            name: ldap2-client-secret
            key: clientSecret

There are two blocks: skas and skas2, matching the name or alias in the Chart.yaml file.

These two blocks hold the same definitions as the ones defined in the original configuration, with two differences:

  • skas.skMerge.providerInfo.ldap2.url: https://skas-skas2-ldap.skas-system.svc
  • skas.skMerge.extraSecrets[0].secret: skas-skas2-ldap-cert

This is to accommodate service and secret name changes due to aliasing of the second dependency.

Then, to launch the deployment, in the same folder as Chart.yaml, execute:

helm dependency build && helm -n skas-system upgrade -i skas .
